InGaAs高速探测器

作者：peter浏览量：118







3.0 High Speed InGaAs Photodiodes
Features:
• Small Diameter (60µm to 300µm)
• Cutoff Wavelength (1.7µm)
• Low Dark Current for High Sensitivity
• Low Capacitance for High Speed (2.5 GHz)

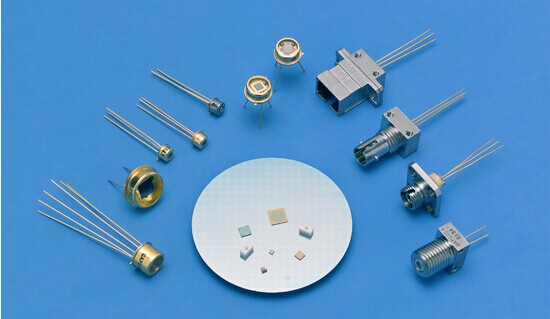

• Packages (TO-46) including Fiber Pigtail, Hi-Reliability Fiber Pigtail, Receptacle and Sub-mounts



Paremeter Active area??mm?? Cut off wavelength A/W min. (typ.) NEP W/ÖHz min. Dark Current max. Package
GAP500 05 1.7um 0.95@1550nm 0.8x10-14 30 @5V(nA) TO46
GAP1000 1 1.7um 0.95@1550nm 1x 10-14 100 @5V(nA) TO46
GAP2000 2 1.7um 0.95@1550nm 3 x10-14 200 @1V(nA) TO5
GAP3000 3 1.7um 0.95@1550nm 5 x10-14 500 (@1V(nA) TO5
GAP5000 5 1.7um 0.95@1550nm 28 x10-14 10mA(@0.3V(nA) TO5
GAP300-1.9 0.3 1.9um 0.9/1.0 3 x10-14 0.1@1V(uA) TO46
GAP500-1.9 0.5 1.9um 0.9/1.0 9 x10-14 0.9@1V(uA) TO46
GAP1000-1.9 1 1.9um 0.9/1.0 0.13 x10-12 4@1V(uA) TO46
GAP2000-1.9 2 1.9um 0.9/1.0 0.26x10-12 10@1V(uA) TO5
GAP3000-1.9 3 1.9um 0.9/1.0 0.38 x10-12 22.5@1V(uA) TO5
GAP300-2.05 0.3 2.05um 0.9/1.0 5.7 x10-14 0.5@1V(uA) TO46
GAP500-2.05 0.5 2.05um 0.9/1.0 8.1 x10-14 1@1V(uA) TO46
GAP1000-2.05 1 2.05um 0.9/1.0 23.4 x10-14 4@1V(uA) TO46
GAP2000-2.05 2 2.05um 0.9/1.0 42.8 x10-14 10@1V(uA) TO5
GAP3000-2.05 3 2.05um 0.95/1.1 90.7 x10-14 12@0.5V(uA) TO5
GAP300-2.2 0.3 2.2um 0.9/1.0 0.14x10-12 1@1V(uA) TO46
GAP500-2.2 0.5 2.2um 0.9/1.0 0.22x10-12 5@1V(uA) TO46
GAP1000-2.2 1 2.2um 0.9/1.0 0.46x10-12 10@1V(uA) TO46
GAP2000-2.2 2 2.2um 0.9/1.0 1.28 x10-12 40@1V(uA) TO5
GAP3000-2.2 3 2.2um 0.9/1.0 2.87x10-12 100@1V(uA) TO5
GAP300-2.6 0.3 2.6um 0.9/1.0 0.81x10-12 13@1V(uA) TO46
GAP500-2.6 0.5 2.6um 0.9/1.0 1.43x10-12 20@0.5V(uA) TO46
GAP1000-2.6 1 2.6um 0.9/1.0 2.03x10-12 80@0.5V(uA) TO46
GAP2000-2.6 2 2.6um 1.0 3.31x10-12 320@0.5V(uA) TO5
GAP3000-2.6 3 2.6um 1.0 5.74x10-12 500@0.5V(uA) TO5
