![ASBN-W高功率卤钨灯](/uploads/allimg/181129/1UA33G6-0.jpg)
Spectral Products 大功率灯源

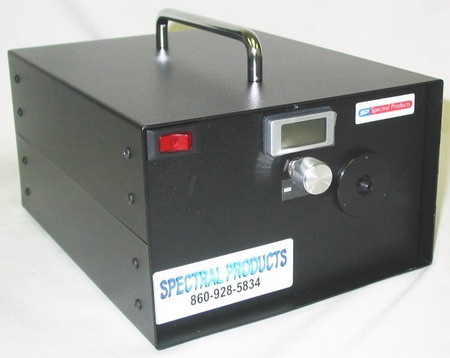

ASBN-W高功率卤钨灯
![ASBN-D130/230深紫外氘灯光源](/uploads/allimg/181129/1UA33556-1.jpg)
波长范围300-2600nm,功率50W/75W/100W/150W
Feature |
Value |
Lamp: |
Power input |
Light output |
Color Temp. |
Life Time |
Filament size |
50W |
900 lumens |
3,000°K |
2,000 hours |
4.2mm X 2.5mm |
75W |
1,400 lumens |
3,000°K |
2,000 hours |
5.0mm X 1.6mm |
100W-H |
3,000 lumens |
3,400°K |
50 hours |
5.3mm X 3.0mm |
100W-L |
2,000 lumens |
3,000°K |
2,000 hours |
5.2mm X 2.3mm |
150W |
4,700 lumens |
3,400°K |
50 hours |
6.2mm X 3.1mm |
Housing: |
Air cooling fan with a regulated power supply,
1" UV grade focusable fused silica collection lens (f#/1.2), 1" UV protected Al coated mirror (f = 12.5mm)
Dimension: 8" X 10" X 5" |
Power Input: |
Input Voltage: 85-264 VAC (110V/220V compatible)
Input Frequency: 47-63Hz
Inrush Current: 30A/100V, 40A/200V
Over-voltage Protection: Clamp, 115-135%
Current Limit: 105-150% typ, Self-reset Fold back
Safety: UL / TUV / CE
Oper. Temp.: 0 to 50 °C |
Power Output: |
Type: constant current DC
VDC: 12V (24V for 150W)
Max. Current: 12.5A (8.4A for 150W)
Ripple/Noise (20MHz BW): 100mV Pk-Pk, typ.
Regulation: ±0.5%, typ |
Warranty: |
One year |
Options: |
Spare lamp: ASBN-WB-050/075/100-H/100-L/150
Input power controller: ASBN-W-PV (including voltage indicator)
Needed to be specify the fiber coupling or collimated output
Focusing lens set for monochromator: ASBN-W-FL (1" UV fused silica lens) |

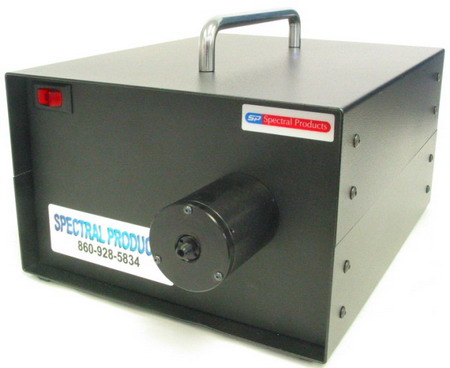

ASBN-D130/230深紫外氘灯光源
![ASB-XE-175大功率氙灯光源](/uploads/allimg/181129/1UA34646-2.jpg)
功率30W
Feature |
Value |
Lamp: |
Type: Deuterium with fused silica jacket, mounted and pre-aligned.
Power input: 30 Watt (nominal)
Lamp current: 300 ± 30 mA DC
Average Life: 1000 hours (nominal) |
Lamp Housing: |
1" quartz doublet (f#/1, 1X) collection lens.
Convection cooled.
Dimension: 6" X 5" X 10" |
Power Supply: |
Power input:115 vac, 50/60 Hz, 3 amps. 230 vac, 50/60 Hz, 1 amp, optional
Power output: Constant current dc, 60-120vdc selectable, 300 mA DC
Regulation: + 10 mA
Stability: 100 ppm/°C
Operating Temperature: 5-35°C |
Warranty: |
One year |
Options: |
Spare lamp (mounted and pre-aligned),
Specify SM, FC, ST, CL, or CS for specific fiber couplers. |

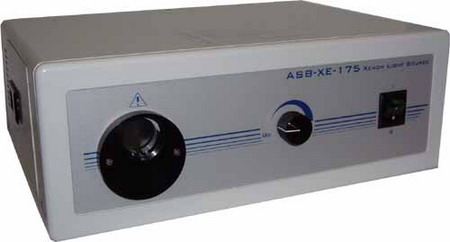

ASB-XE-175大功率氙灯光源
![单氙灯和卤钨灯光源](/uploads/allimg/181129/1UA3MX-3.jpg)
功率150-200W,色温5600K
ASB-XE-175-EX: UV extended, 200nm-2200nm (dominant, 250nm-1100nm)
ASB-XE-175-BF: Ozone blocking, 320nm-700nm
ASB-XE-175-BFEX: NIR extended, Ozone blocking, 320nm-2200nm (dominant, 320nm-1100nm)
Feature |
Value |
Lamp: |
Type: CERMAX LX175F
Power: 200 Watts (maximum)
Power Range: 150-200 W
Color Temperature: 5600°K
Current: 14 amps DC (nominal)
Average Life: Typically 1000 hours (500 hours minimum)
Voltage: 12-17V (14V nominal)
Trigger Voltage: 25 Kilovolts
Boost Voltage: 140-200 Volts
Current Leakage: < 300mA |
Weight:
|
7.5 lbs. (3.4 kg) |
Input Line: |
95-136 VAC, 50/60 Hz (only) |
Input Current: |
3.5 amp. |
Environment: |
Operating: +6 to +45°C
Storage: -40 to +70°C |
Front Panel: |
Brightness Control (0-100%)
Output Aperture |
Side Panel: |
Main Power (On/Off)
Line Cord Jack (IEC 320)
(US to IEC Line Cord included)
Fuse Holder - MDL-5 |
Caution: |
Damage to glass or fused silica fiber optic lightguides can occur due to high temperatures associated with Xenon lamps. Use our liquid light guides (order separately). |

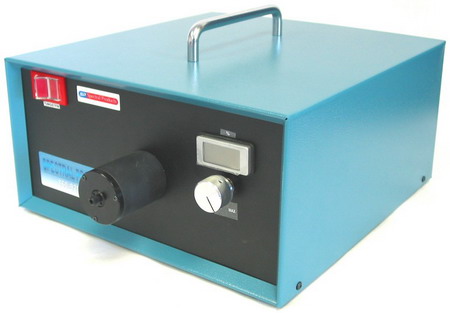

单氙灯和卤钨灯光源
![单氙灯和卤钨灯光源](/uploads/allimg/181129/1UA3MX-3.jpg)
氘灯30W + 高功率卤钨灯
Part Number |
Description |
ASBN-D1-W050F
ASBN-D1-W050M
|
30W deep UV Deuterium lamp and 50W Tungsten-Halogen (3000 oK / 2000 hours / 900 lumens) light source, 180nm ~ 2.6mm.
w/ 1" UV fused silica doublet & UV protected mirror for focusing TH.
w/ 1" UV fused silica doublet for optimal fiber coupling/monochromator f# matching
w/ regulated power supplies.
F: fiber coupling,
M: monochromator f# matching. |
ASBN-D1-W075F
ASBN-D1-W075M |
30W deep UV Deuterium lamp and 75W Tungsten-Halogen (3000 oK / 2000 hours / 1400 lumens) light source, 180nm ~ 2.6mm.
w/ 1" UV fused silica doublet & UV protected mirror for focusing TH.
w/ 1" UV fused silica doublet for optimal fiber coupling/monochromator f# matching
w/ regulated power supplies.
F: fiber coupling,
M: monochromator f# matching. |
ASBN-D1-W100F-H
ASBN-D1-W100F-L
ASBN-D1-W100M-H
ASBN-D1-W100M-L |
30W deep UV Deuterium lamp and 100W Tungsten-Halogen light source, 180nm ~ 2.6mm.
w/ 1" UV fused silica doublet & UV protected mirror for focusing TH.
w/ 1" UV fused silica doublet for optimal fiber coupling/monochromator f# matching
w/ regulated power supplies.
H: High color temperature (3400 oK / 50 hours / 3000 lumens)
L: Low color temperature (3000 oK / 2000 hours / 2000 lumens)
F: fiber coupling,
M: monochromator f# matching. |
ASBN-D1-W150F
ASBN-D1-W150M |
30W deep UV Deuterium lamp and 150W Tungsten-Halogen (3400 oK / 50 hours / 4700 lumens) light source, 180nm ~ 2.6mm.
w/ 1" UV fused silica doublet & UV protected mirror for focusing TH.
w/ 1" UV fused silica doublet for optimal fiber coupling/monochromator f# matching
w/ regulated power supplies.
F: fiber coupling,
M: monochromator f# matching. |
ASBN-D2-W双氙灯和卤钨灯光源
![单氙灯和卤钨灯光源](/uploads/allimg/181129/1UA3MX-3.jpg)
双30W氘灯 + 高功率卤钨灯
Part Number |
Description |
ASBN-D2-W050F
ASBN-D2-W050M
|
Two 30W deep UV Deuterium lamps and 50W Tungsten-Halogen (3000 oK / 2000 hours / 900 lumens) light source, 180nm ~ 2.6mm.
w/ 1" UV fused silica doublet & UV protected mirror for focusing TH.
w/ 1" UV fused silica doublet for focusing the 2nd deuterium lamp.
w/ 1" UV fused silica doublet for optimal fiber coupling/monochromator f# matching
w/ regulated power supplies.
F: fiber coupling,
M: monochromator f# matching. |
ASBN-D2-W075F
ASBN-D2-W075M |
Two 30W deep UV Deuterium lamps and 75W Tungsten-Halogen (3000 oK / 2000 hours / 1400 lumens) light source, 180nm ~ 2.6mm.
w/ 1" UV fused silica doublet & UV protected mirror for focusing TH.
w/ 1" UV fused silica doublet for focusing the 2nd deuterium lamp.
w/ 1" UV fused silica doublet for optimal fiber coupling/monochromator f# matching
w/ regulated power supplies.
F: fiber coupling,
M: monochromator f# matching. |
ASBN-D2-W100F-H
ASBN-D2-W100F-L
ASBN-D2-W100M-H
ASBN-D2-W100M-L |
Two 30W deep UV Deuterium lamps and 100W Tungsten-Halogen light source, 180nm ~ 2.6mm.
w/ 1" UV fused silica doublet & UV protected mirror for focusing TH.
w/ 1" UV fused silica doublet for focusing the 2nd deuterium lamp.
w/ 1" UV fused silica doublet for optimal fiber coupling/monochromator f# matching
w/ regulated power supplies.
H: High color temperature (3400 oK / 50 hours / 3000 lumens)
L: Low color temperature (3000 oK / 2000 hours / 2000 lumens)
F: fiber coupling,
M: monochromator f# matching. |
ASBN-D2-W150F
ASBN-D2-W150M |
Two 30W deep UV Deuterium lamps and 150W Tungsten-Halogen (3400 oK / 50 hours / 4700 lumens) light source, 180nm ~ 2.6mm.
w/ 1" UV fused silica doublet & UV protected mirror for focusing TH.
w/ 1" UV fused silica doublet for focusing the 2nd deuterium lamp.
w/ 1" UV fused silica doublet for optimal fiber coupling/monochromator f# matching
w/ regulated power supplies.
F: fiber coupling,
M: monochromator f# matching. |
|
